Case Study
Concealed Water Leak Located After Damp Spread Across Walls in Abingdon
Spreading Water Marks Investigated
Water marks near the front door and side of the property had spread onto internal walls without revealing their source. A concealed plumbing leak area was identified and marked, with separate repair access required through removal of a toilet waste pipe.
Google Reviews ★★★★★ 5.0 Rating 70+ Reviews Read Reviews- ✓ Leak Area Located
- ✓ Area Marked
- ✓ Repair Not Undertaken
- ✓ Plumber Access Required
The Challenge
Water Marks Spread Without Revealing Their Source
The customer first noticed water marks on walls near the front door and along the side of the property. The marks then spread onto internal walls, but there was no visible indication of where the water originated. Because moisture can appear away from a concealed source, the affected areas alone could not show which part of the internal plumbing required access.
- ✓ Water marks first appeared near the front door and side of the property
- ✓ The marks spread onto internal walls
- ✓ No source was visible
- ✓ The concealed plumbing leak area needed to be identified before repair access
Investigation
Investigation Evidence

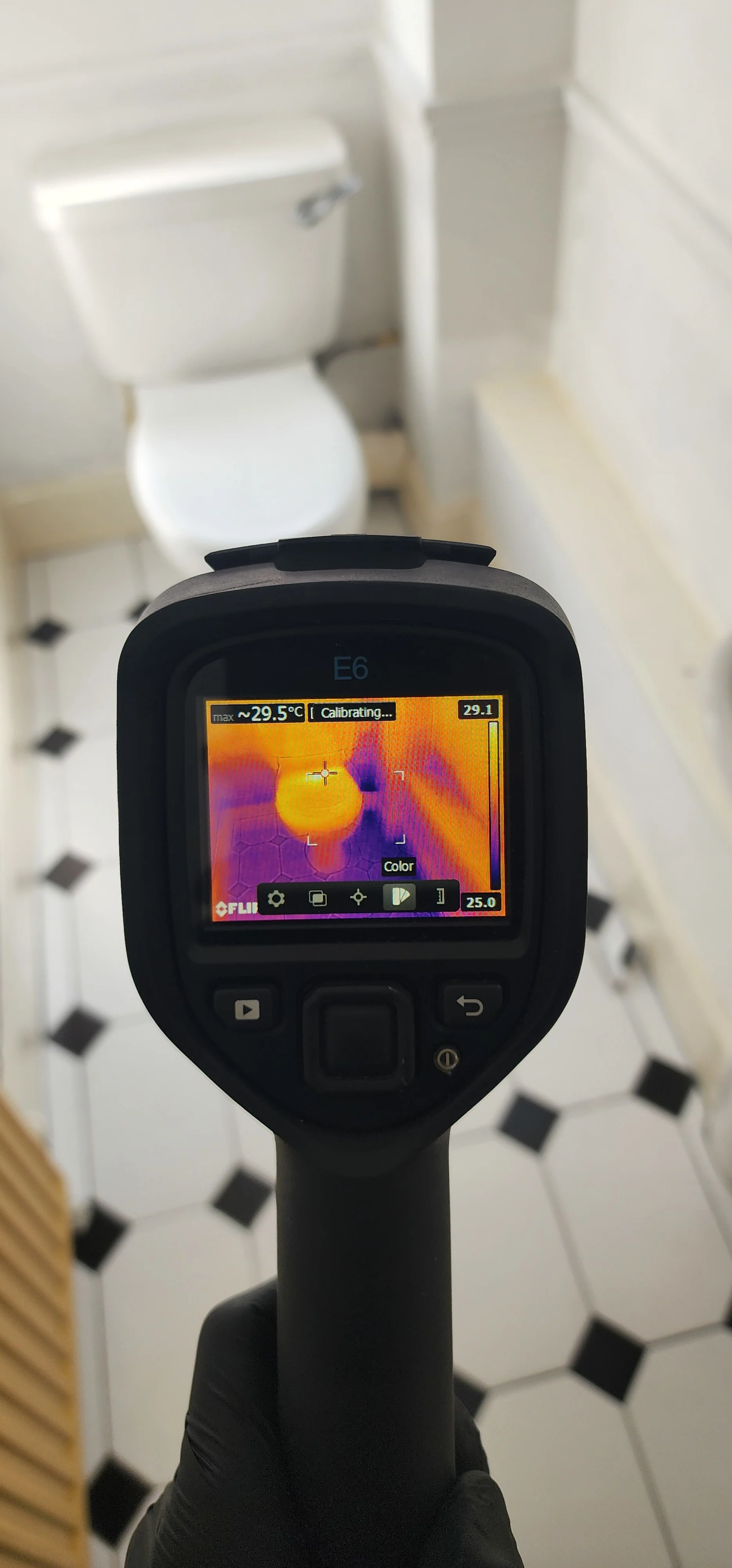

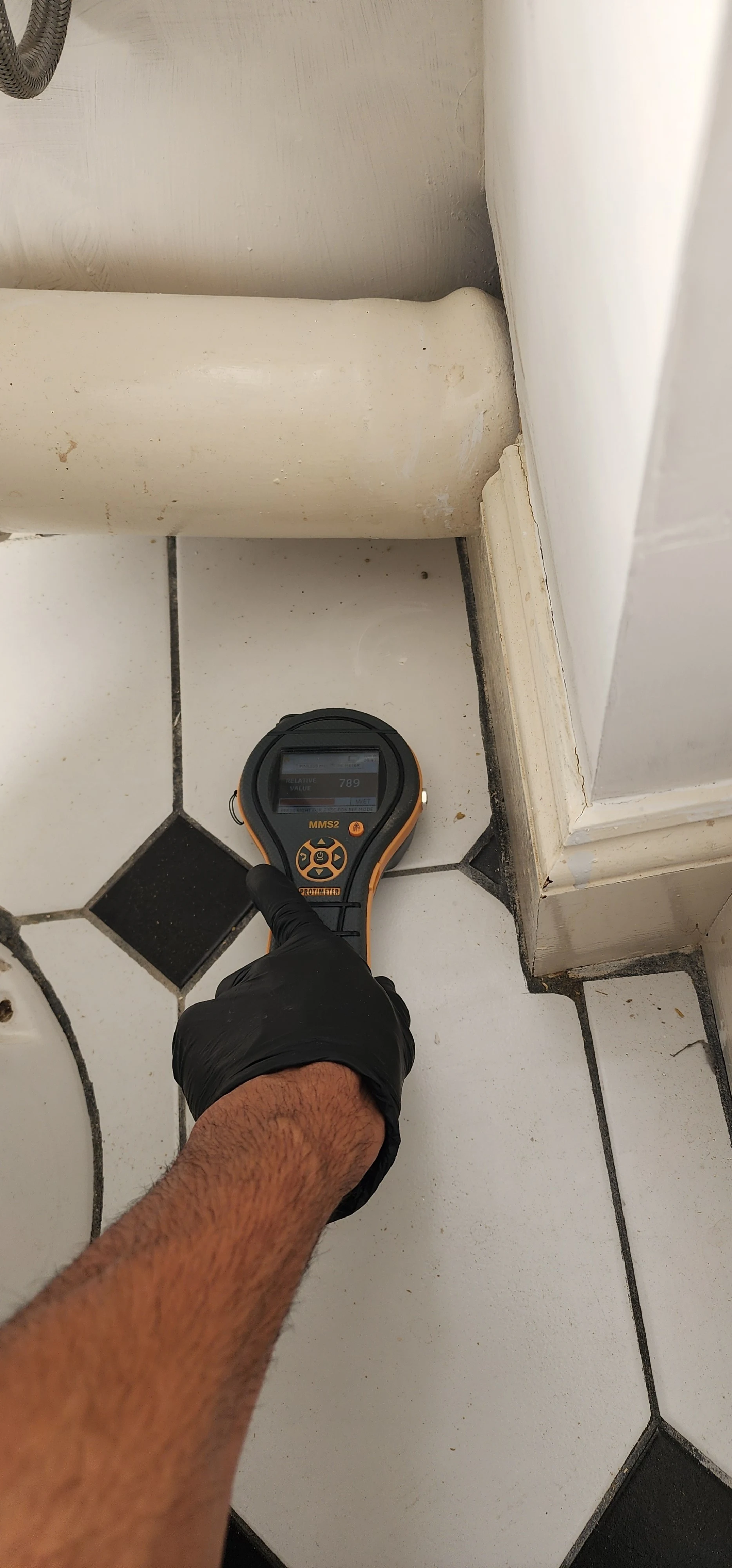

Selected photos and videos from the investigation sequence showing the evidence-led approach used on site.
Investigation
Building Evidence Around A Concealed Plumbing Leak
Pressure testing, tracer gas and endoscopic camera inspection were recorded as part of the investigation. These methods allowed the concealed plumbing issue to be assessed from different forms of evidence before the likely leak area was marked. The submission does not assign the final location to one technology, so the conclusion is presented as the result of several tests considered together.
Pressure Testing
The visible water marks did not identify which concealed part of the plumbing system was affected.
Pressure testing was completed as one of several recorded tests during the investigation.
No standalone result was supplied, so the test is treated as part of the combined evidence rather than sole confirmation.
MethodTracer Gas Investigation
Tracer gas was selected to support investigation of a concealed leak where the visible wall marks did not reveal the source.

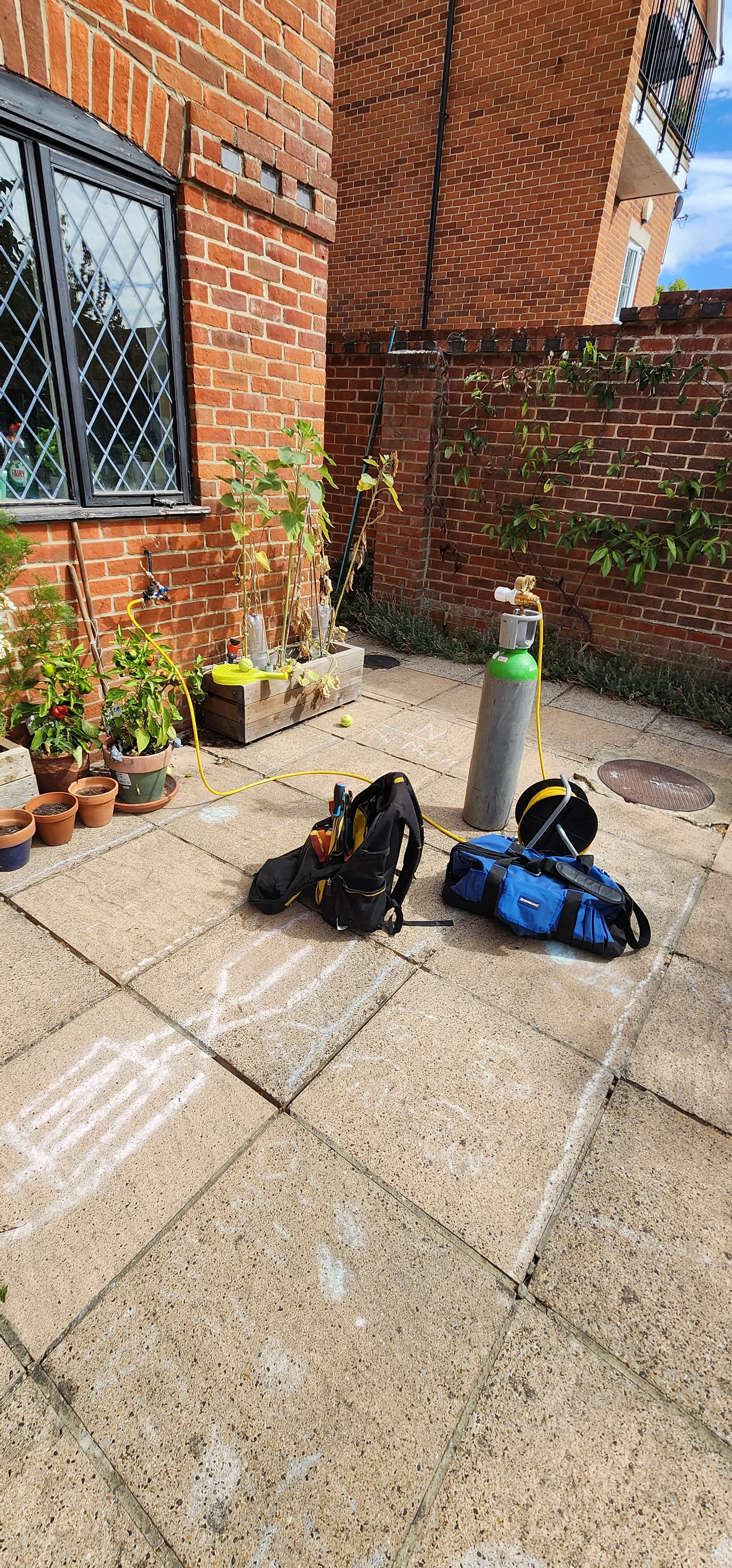

Tracer gas testing was carried out and the supplied photographs record the external test setup.
No individual tracer-gas reading was recorded, so the identified area is attributed to the investigation as a whole.
MethodEndoscopic Camera Inspection
A compact camera could support visual inspection around a difficult-to-access area without assuming the wall marks sat directly over the source.
Endoscopic camera inspection was included among the recorded investigation methods.
The submission does not record a separate camera finding, so this method is not presented as independently locating the leak.
Findings
Leak Area Identified And Marked For Repair Access
Several tests identified the area of the concealed water leak. This gave the customer a defined location despite the water marks having spread across different walls. The area was marked so repair access could be planned, but the submission does not identify the source pipe or specify how the leak began.
- The concealed leak area was identified
- The area was marked for the next contractor
- The spreading wall marks did not reveal the precise source on their own
- The source pipe and cause were not recorded
Outcome
A Clear Repair Route Was Given To The Customer
- ✓ Leak Area Located
- ✓ Area Marked
- ✓ Repair Not Undertaken
- ✓ Plumber Access Required
Pro Leak Detection did not undertake the repair because gaining suitable access required removal of a toilet waste pipe. The customer was advised to arrange a plumber able to remove the waste pipe, access the marked area and complete the repair. The investigation therefore ended with a located area and an actionable next step, not a completed repair.
Investigation Insights
What This Investigation Shows
- ✓Water marks can spread across internal finishes without showing where a concealed leak originates.
- ✓Several investigation methods may need to be considered together when no source is visible.
- ✓Marking the identified area can give the repair contractor a defined access target.
- ✓When specialist access falls outside the agreed work, the accurate outcome is a clear repair route rather than a repair claim.
Local Coverage
Leak Detection In Abingdon
This investigation was completed in Abingdon, Oxfordshire.
We regularly carry out leak detection investigations across Abingdon and surrounding areas.
