Case Study
Central Heating Leak Detection in Betchworth
Concealed Central Heating Pipework Leak
Tracer Gas, Thermal Imaging and Pressure Testing were used to investigate the symptoms and confirm the cause: leak area confirmed around radiator pipework.
Google Reviews ★★★★★ 5.0 Rating 70+ Reviews Read Reviews- ✓ Leak Located
- ✓ Non-Destructive Investigation
- ✓ Minimal Disruption
- ✓ Repair Completed
The Challenge
Concealed Central Heating Pipework Leak

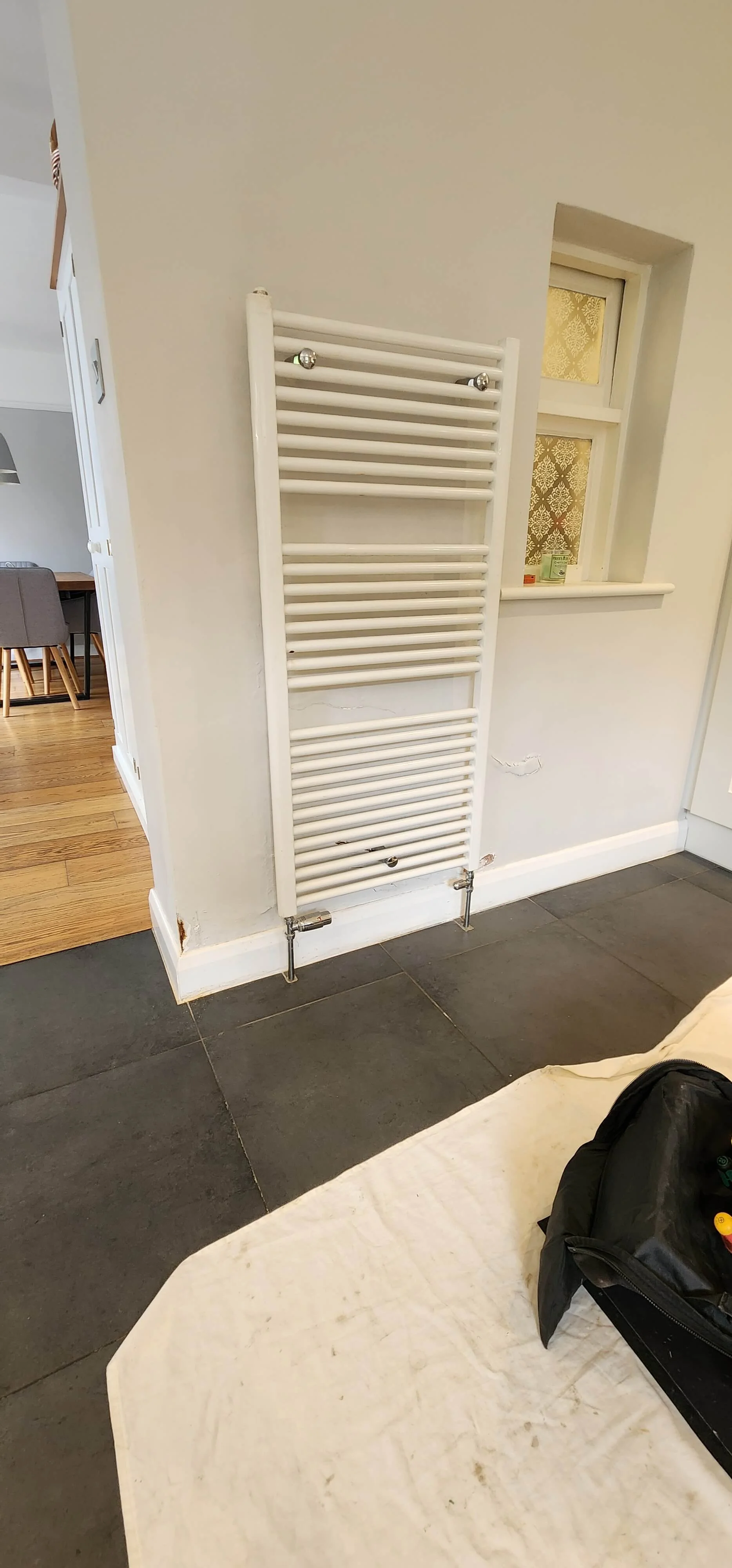

The investigation involved a central heating leak at a property in Betchworth. The affected area included radiator pipework set into the wall and floor, where staining and previous surface damage indicated a concealed issue rather than an immediately visible leak.
- ✓ Central heating leak suspected around concealed pipework

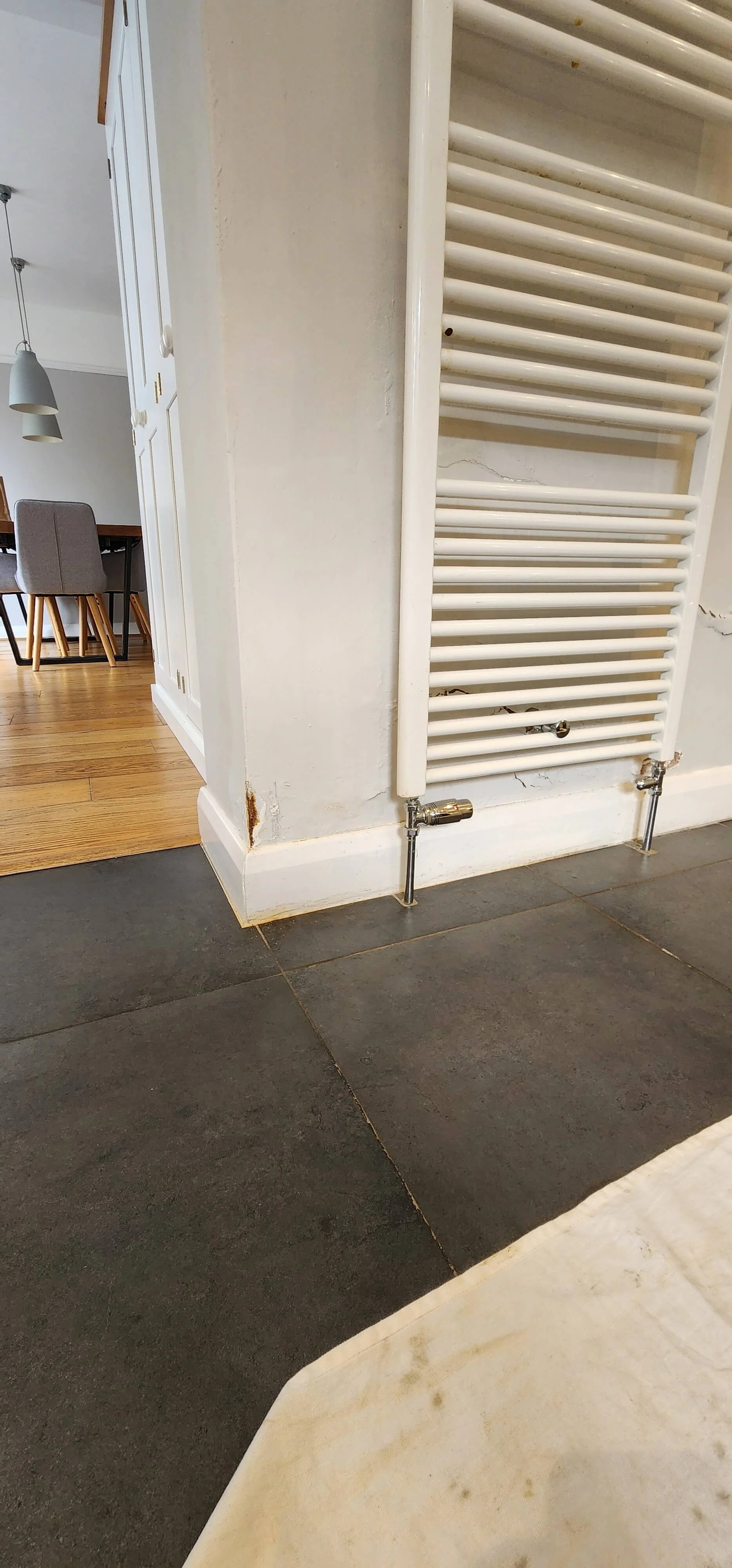

- ✓ Staining and damaged finishes visible near radiator connections
- ✓ Targeted investigation required before opening the floor area
Investigation
Investigation Evidence
Selected photos and videos from the investigation sequence showing the evidence-led approach used on site.
Investigation
Tracer Gas, Thermal Imaging And Pressure Testing

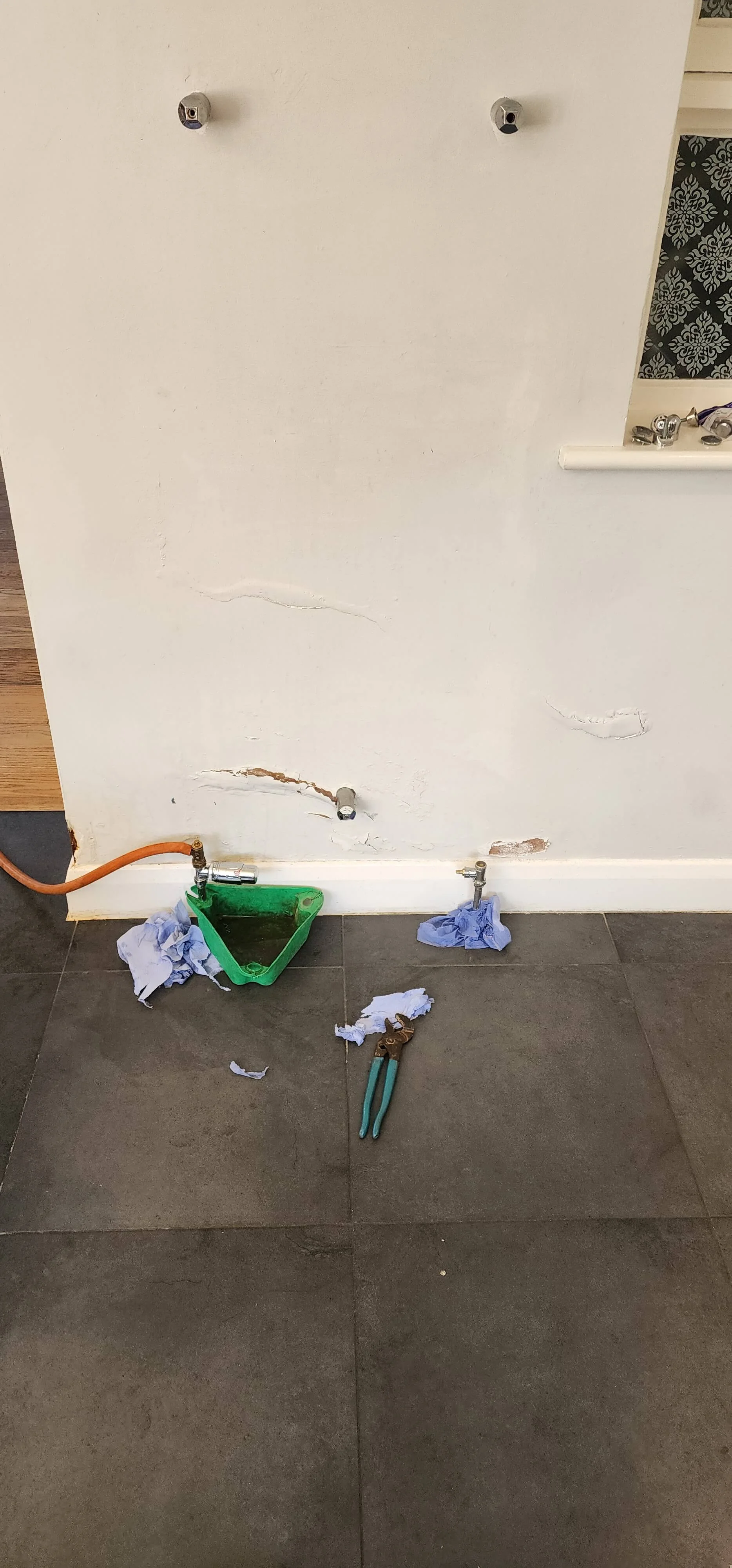

The supplied notes confirm tracer gas, thermal imaging and pressure testing were used during the investigation. Evidence from the visit shows specialist test equipment connected at the radiator pipework and targeted access around the affected floor and wall area.
Tracer Gas
Tracer gas testing helped confirm or narrow concealed leak locations.
MethodThermal Imaging
Infrared camera checks helped identify temperature differences linked to the leak investigation.
MethodPressure Testing
Controlled pressure testing helped confirm whether pipework or fittings were losing water.
Findings
Leak Area Confirmed Around Radiator Pipework

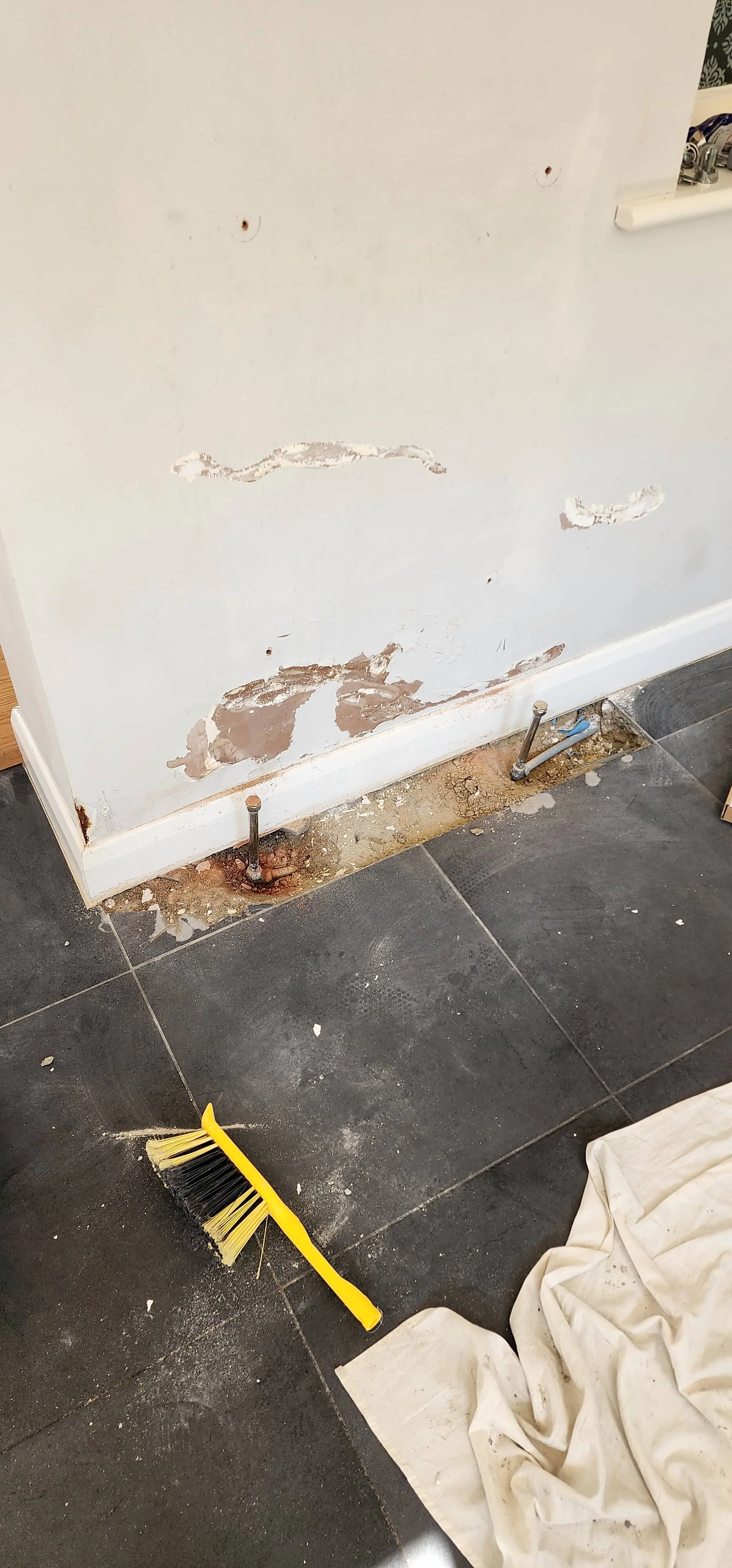

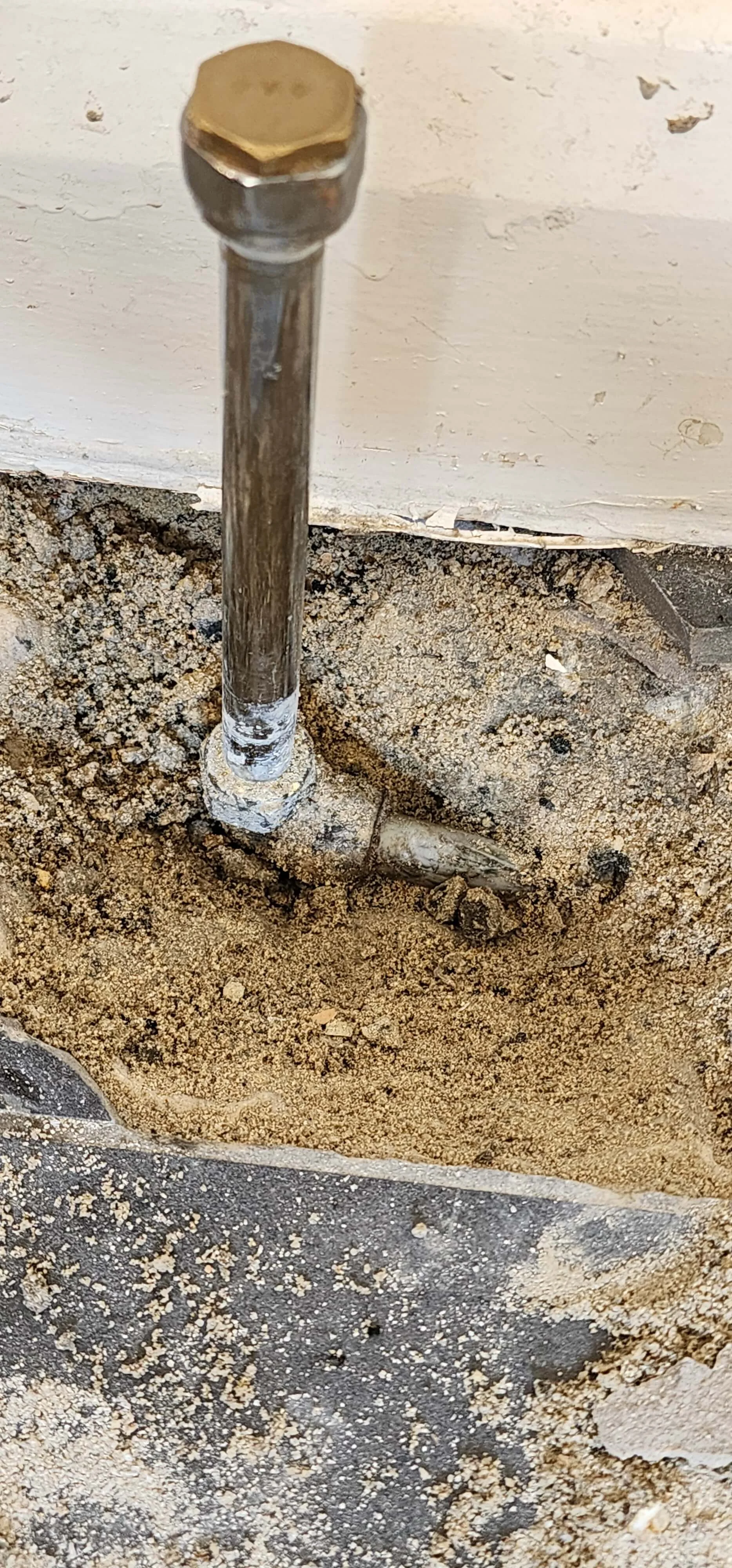

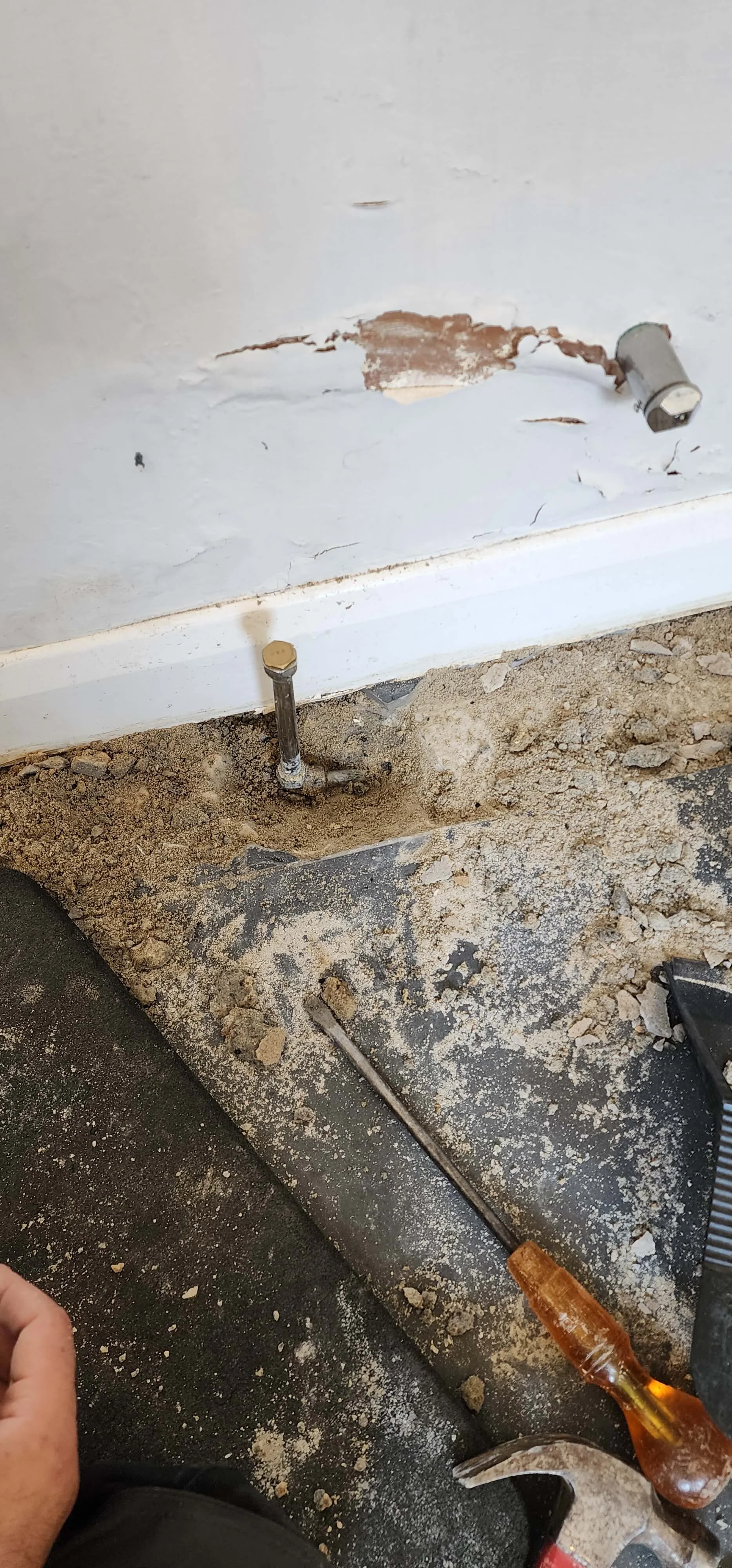

The investigation evidence shows the radiator pipework area opened for confirmation, with the affected pipe route exposed beneath the floor finish. This allowed the leak position to be narrowed without wider exploratory access across the room.

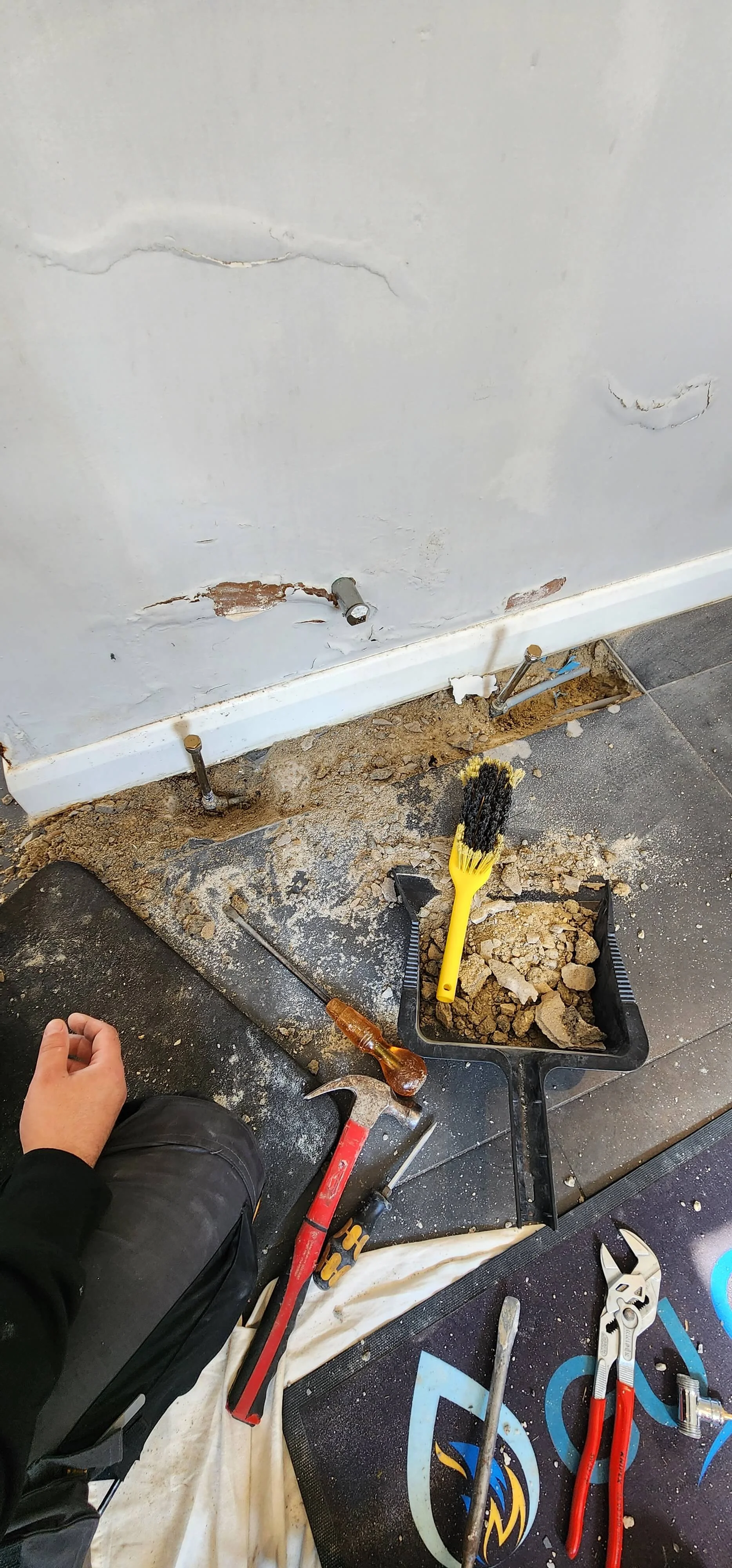

- Radiator pipework route exposed during the investigation
- Specialist testing supported targeted access
- The suspected central heating leak area was confirmed
Outcome
Leak Location Narrowed For Targeted Repair
- ✓ Leak Located
- ✓ Non-Destructive Investigation
- ✓ Minimal Disruption
- ✓ Repair Completed
The investigation identified the affected central heating pipework area, giving a clear location for targeted repair work rather than broader disruption to the surrounding floor and wall finishes.
Local Coverage
Leak Detection In Betchworth
This investigation was completed in Betchworth, Surrey.
We regularly carry out leak detection investigations across Betchworth and surrounding areas.
